Simatic KTP1200 Basic

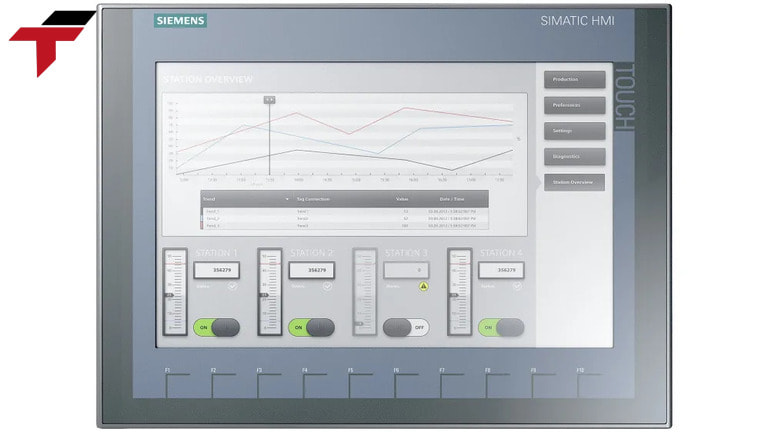

Simatic Siemens KTP1200 Basic features a large, high-resolution, adjustable display with more than 65,000 colors and improved usability thanks to an innovative user interface and newly upgraded graphical controls.
-
Description

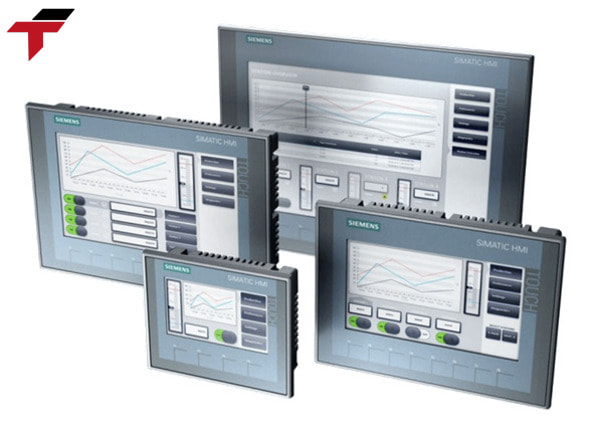

The KTP1200 SIMATIC HMI Basic Touch Panel product line is a small line of the human-machine interface (HMI) control device series developed by Siemens, aiming to provide intuitive monitoring and efficient operation solutions for industrial automation applications. It also features touch functionality and intuitive operation, USB memory storage, and various connection versions for Profibus or Profinet.
Detailed product specifications
| Specifications | Details |
| Brand | Siemens |
| Manufacturer Series | SIMATIC |
| Product line | KTP1200 Basic |
| Model name/number | 6AV2123-2MA03-0AX0 |

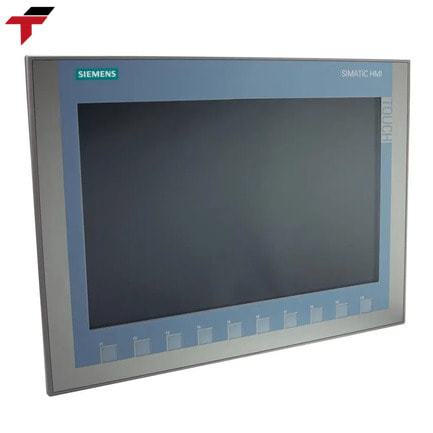

| Display | 12 inches TFT widescreen display, LED backlighting |
| Resolution | 1280 x 800pixels |
| Dimension (WxHxD) mm | 330 x 245 x 60 mm |

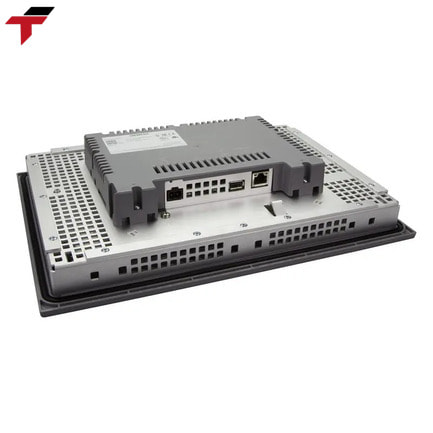

| Interface | 1 x RJ 45 Ethernet for PROFINET / 1 x USB host |
| Software Configuration | WinCC Basic (TIA Portal) V13 or higher |
| Number of colors | 65 536 |
| Rated voltage | 24V |
| Onboard Memory | 10 MB, 256 kB |
| Maximum operating temperature | 50°C |
| Minimum operating temperature | 0°C |
| Weight | 700g |
Where is a reputable supplier of KTP1200 SIMATIC HMI?
If you are looking for a top-notch automation control solution for your business, the KTP1200 SIMATIC HMI is the ideal choice. To buy genuine products at the most competitive prices, contact FLEXTECH immediately – the official distributor of Delta Electronics in Malaysia.
Commitment when buying at FLEXTECH
- 100% genuine products
- Warranty up to 24 months
- Professional free consulting team 24/7
- Fast delivery nationwide within 2 hours
Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
