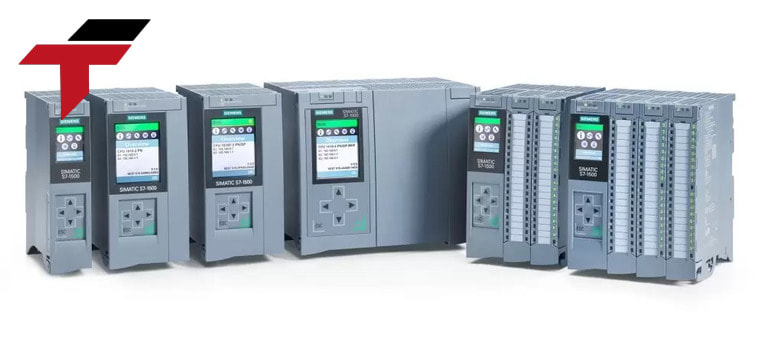

Siemens Simatic S7 1500
Thanks to modern technology and fast data processing capabilities, the S7-1500 has proven its reliability and efficiency in optimizing business production processes. In addition, this article will provide readers with information about the differences between Siemens Simatic S7 1500 and S7 1200 series.
-
Description
Overview

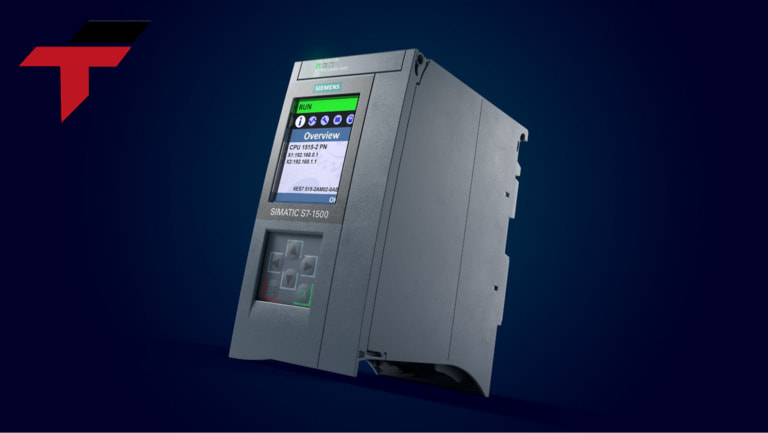

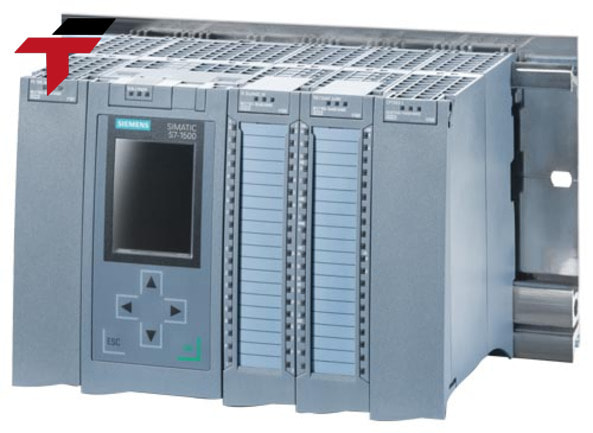

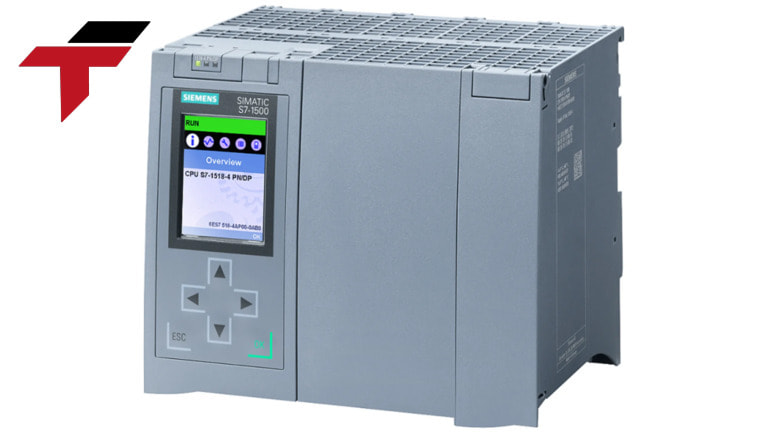

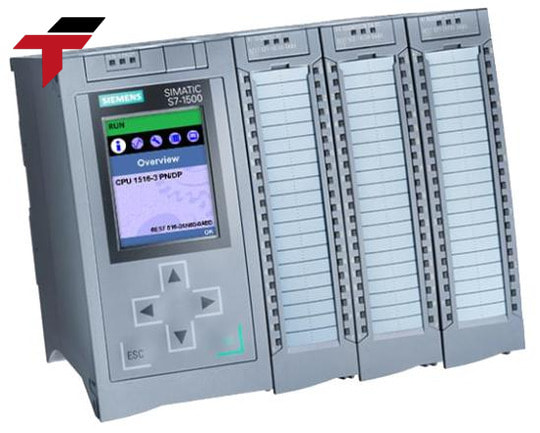

Siemens Simatic S7 1500 PLC is one of Siemens’ high-end PLC programmable controllers. This product line is designed in the form of a module that can be integrated with many different types of CPUs to suit each specific function. This device also supports communication protocols such as Profinet, Ethernet/IP, Modbus, and more to connect to other systems.
Simatic S7 1500 is programmed with Siemens’ most famous and modern programming software such as TIA Portal and SIMATIC STEP 7. Therefore, the product is often used in many different industrial fields because of its ability to process and encode data quickly, bringing optimal efficiency to businesses.
Detailed product specifications
| Specifications | Details |
| Brand | Siemens |
| Product line | SIMATIC S7-1500 |
| Memory size | 512KB to 16MB |
| Dimension | 175x147x129mm (LxWxH) |
| Integrated technology | HSC, PTO/PWM and Motion control. |
| Supply voltage | 24V |
| Programming language | FBD, LAD, SCL, SFC, IL |
| Network communication protocol | Ethernet, Profinet, Profibus, RS232, RS485 |
| Processor | Cortex-M4 |
| Number of inputs/outputs | The number of inputs/outputs can be up to 2048 points. |
| Maximum transmission speed | 1000Mbit/s |
| Security | Protect the PLC program by downloading/uploading it with a password.
Protect OB, DB, FC, FB function blocks in the program from being accessed or adjusted with a Password. |
| Maximum temperature | +70°C |
| Minimum temperature | -30°C |
What are the improved features of the S7 1500 series compared to the S7 1200?
PLC Siemens Simatic S7 1500 and S7 1200 are both excellent product lines and are widely used in the field of industrial automation. S7 1500 and S7 1200 have the same main task of processing input data, then encoding and transmitting signals to output devices, thereby helping businesses improve work efficiency. Although they are from the same manufacturer, these two product lines also have fundamental differences in structure and function.
| Simatic S7 1500 | Simatic S7 1200 | |
| Processor | Cortex-M4 | Cortex-M3 |
| Number of inputs/outputs | The number of inputs/outputs can be up to 2048 points. | The number of inputs/outputs can be from 8 to 512 points. |
| Memory size | 512KB to 16MB | 75KB |
| Motion Handling | S7 1500 relies on VFD/Servo | Mainly depends on Stepper |
| Application | S7 1500 is the best choice for complex production lines, suitable for large-scale factories because of its more modern technology. | S7 1200 with basic functions is enough to meet the needs of small or medium factories. |
| Price | Price range $1000-$2000 | Price range $500-$1000 |
Where to buy Siemens Simatic S7 1500?
If you are looking for a top-notch automation control solution for your business, the Siemens Simatic S7 1500 is the ideal choice. To buy genuine products at the most competitive prices, contact FLEXTECH immediately – the official distributor of Delta Electronics in Malaysia.
Commitment when buying at FLEXTECH
- 100% genuine products
- Warranty up to 24 months
- Professional free consulting team 24/7
- Fast delivery nationwide within 2 hours
Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
