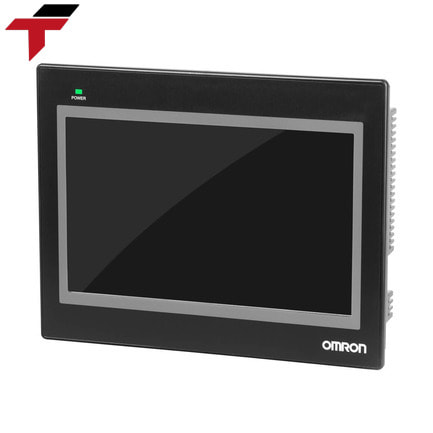

OMRON NB10W TW01B
The Omron NB10W-TW01B HMI product line is a small line of the human-machine interface (HMI) control device series developed by Omron, aiming to provide intuitive monitoring and efficient operation solutions for industrial automation applications. This product is gradually becoming the ideal choice for many businesses in factory automation.
-
Description
Overview
The Omron NB Series HMI is a high-end Human Machine Interface (HMI) line developed by OMRON to provide an efficient, cost-effective solution for industrial automation applications. One of the biggest advantages of the NB Series is its ability to support many popular communication protocols such as Modbus RTU, and Modbus TCP, making it easy to integrate with PLC systems, especially with OMRON’s PLC line.

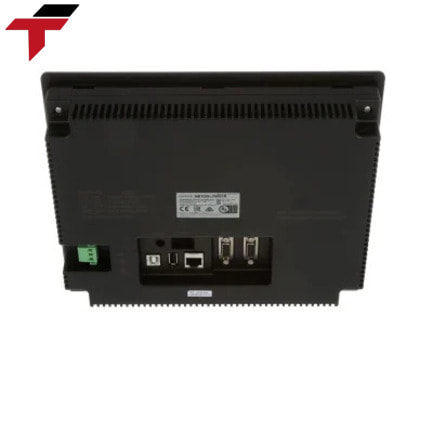

NB10W TW01B is one of the product lines of the NB HMI series. The device is the top choice of many manufacturing facilities, with a large size of 10 inches, high resolution of 800×400 pixels and more than 65 thousand display colors, supporting most types of PLCs and diverse connection ports such as RS-232C, RS-422A, RS-485, USB Host, USB Slave, Ethernet…
Currently, the price of the HMI NB7W TW01B line ranges from $1000 to $2000, depending on the model and technology the product offers.
Detailed product specifications
| Specifications | Details |
| Brand | OMRON |
| Model name | NB10W TW01B |
| Panel type | 10.1 inches TFT LCD |
| Resolution | 800 × 480 pixels |
| Touch panel | Analog resistive membrane type, resolution 1024 × 1024, life: 1 million touch operations |
| Backlight | LED backlight (50,000 hours of operating time at the normal temperature (25°C)* |
| Number of color | 65.536 colors |
| CPU | ARM Cortex-A8 (800 MHz) |
| Internal memory | 128 MB (including system area) |
| Connection port | 1 x RS-232C/422A/485, 1 x USB Slave, 1 x USB Host, 1 x Ethernet, 2 x RS-232C |
| USB Host | Equivalent to USB 2.0 full speed, type A, Output power 5 V, 150 mA |
| Rated voltage | 24VDC |
| Backup Battery Life | About 5 years or more at 25°C (subject to operation temperature and condition) |
| Operation temperature | 0°C to 50°C (32°F to 122°F) |
| Dimension (WxHxD) mm | 210.8 × 268.8 × 54.0 |
| Weight | 1525 g max. |
Precautions for Safe Use
- Do not connect AC power to DC power connectors
- The product should be installed in a dry, cool place, and direct sunlight should be avoided.
- Check the device monthly to detect and promptly handle problems encountered
- Avoid using alcohol or strong chemicals for cleaning as it may damage the TFT screen
- Ensure using a 24VDC power source that matches the device’s specifications to avoid damaging the circuit
- Please contact the nearest distributor or the OMRON customer care center for a free battery replacement. Do not replace the battery at home.
Following the above notes will help ensure the efficient operation of the Omron NB10W-TW01B and prolong the device’s life during use.
Where is a reputable supplier of OMRON NB10W TW01B?
If you are looking for a top-notch automation control solution for your business, the OMRON NB10W TW01B is the ideal choice. To buy genuine products at the most competitive prices, contact FLEXTECH immediately – the official distributor of Delta Electronics in Malaysia.
Commitment when buying at FLEXTECH
- 100% genuine products
- Warranty up to 24 months
- Professional free consulting team 24/7
- Fast delivery nationwide within 2 hours
Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
