OMRO NB5Q TW01B

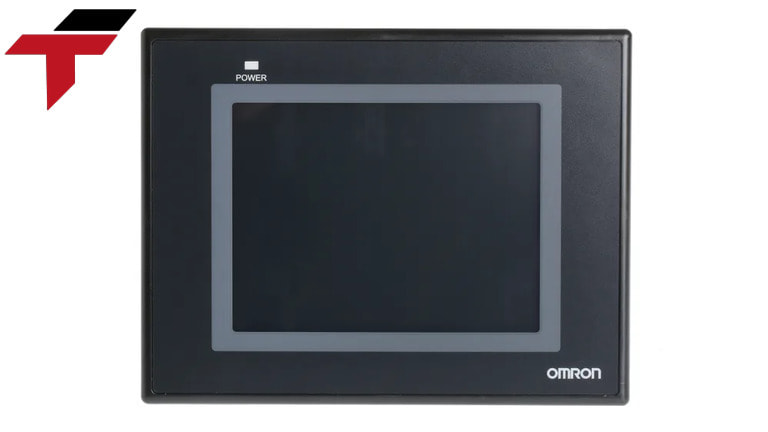

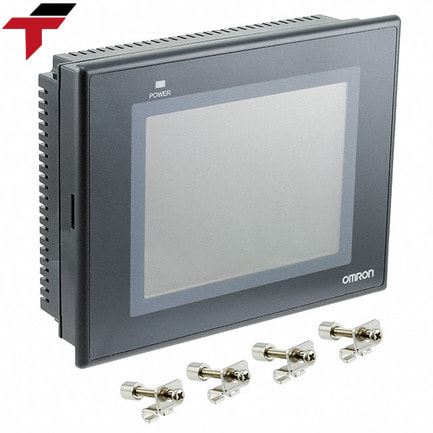

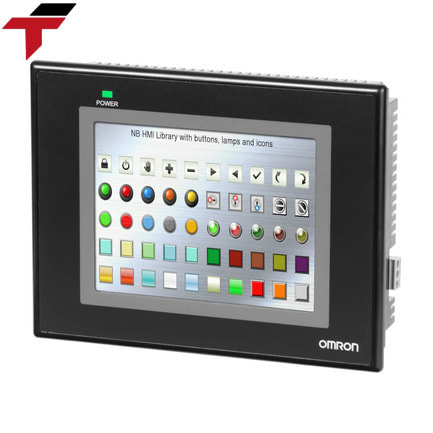

Omron NB5Q TW01B HMI has a 5.6-inch screen, a high resolution of 320 x 234pixels, and more than 65.000 colors. This provides a sharp display and helps technicians observe the process intuitively. In addition, the device supports many different connection interfaces, such as Ethernet/USB Host/USB Slave/RS-232C, uses easy-to-operate Sysmac software, and is dust—and water-resistant, meeting IP65 standards.
-
Description
The HMI NB5Q TW01B screen is a multi-function screen line manufactured by the famous Omron brand. The product is manufactured with specialized functions serving in the fields of industrial automation such as machinery lines, machine manufacturing, and assembly… Making management and monitoring of the entire process more convenient than ever.
Detailed product specifications
| Specifications | Details |
| Brand | OMRON |
| Model name | NB5Q TW01B |
| Panel type | 5.6 inches TFT LCD |
| Resolution | 320 x 234pixels |
| Touch panel | Analog resistive membrane type, resolution 1024 × 1024, life: 1 million touch operations |
| Backlight | LED backlight (50,000 hours of operating time at the normal temperature (25°C)* |
| Number of color | 65.536 colors |
| CPU | ARM Cortex-A8 (800 MHz) |
| Internal memory | 128 MB (including system area) |

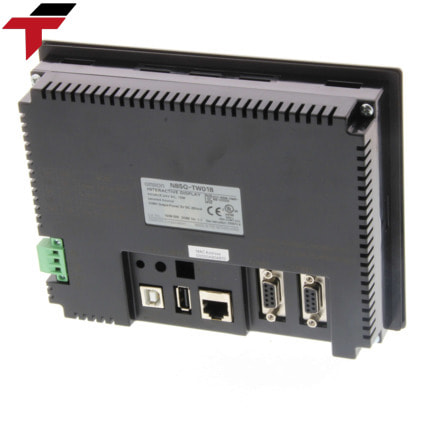

| Connection port | 1 x RS-232C/422A/485, 1 x USB Slave, 1 x USB Host, 1 x Ethernet, 2 x RS-232C |
| USB Host | Equivalent to USB 2.0 full speed, type A, Output power 5 V, 150 mA |
| Rated voltage | 24VDC |
| Backup Battery Life | About 5 years or more at 25°C (subject to operation temperature and condition) |
| Operation temperature | 0°C to 50°C (32°F to 122°F) |

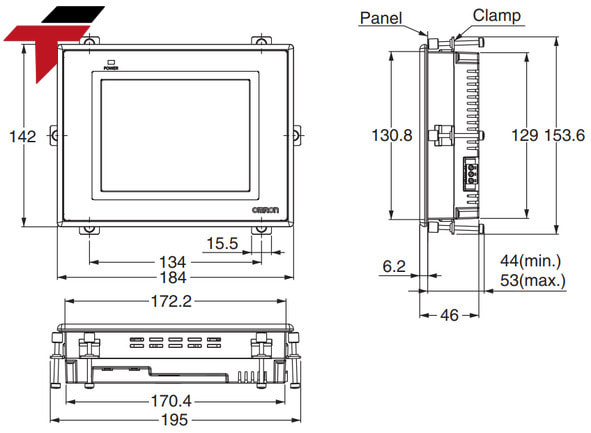

| Dimension (WxHxD) mm | 184 x 142 x 46 mm |
| Weight | 627 g max |
Benefit
- The 5.6-inch wide screen, 320 x 234 resolution, and more than 65,000 display colors help users operate the production line more intuitively and accurately.
- Diverse integration capabilities with other production line machines or PLC systems. This flexibility helps businesses improve automation capabilities for the entire factory, allowing operators to manage different equipment from a single interface.
- The device is equipped with an IP65 protection level (on the front) with basic water resistance, impact resistance, and vibration resistance to ensure stable operation in industrial environments.
- It’s cheaper than other OMRON HMI lines. The market price is around 500 USD – 800 USD.
- Integrated system memory card for program storage.
- Support up to 32 different languages to serve users worldwide.
Where is a reputable supplier of OMRON NB5Q TW01B?
If you are looking for a top-notch automation control solution for your business, the OMRON NB5Q TW01B is the ideal choice. To buy genuine products at the most competitive prices, contact FLEXTECH immediately – the official distributor of Delta Electronics in Malaysia.
Commitment when buying at FLEXTECH
- 100% genuine products
- Warranty up to 24 months
- Professional free consulting team 24/7
- Fast delivery nationwide within 2 hours
Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
