HMI DELTA DOP 103BQ

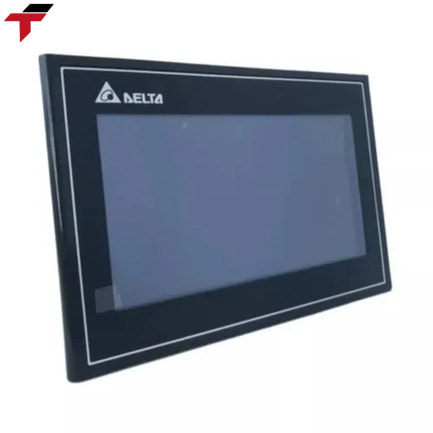

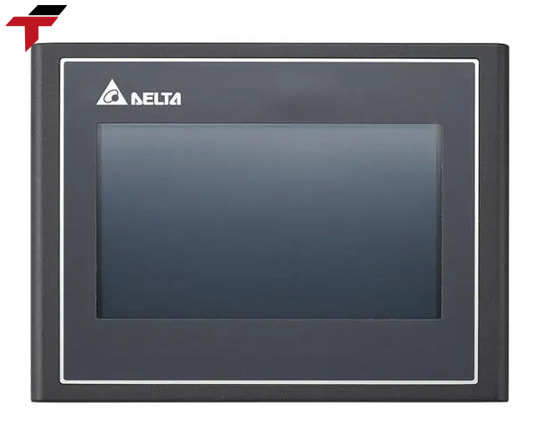

DOP-103BQ is a basic screen line of Delta’s DOP-100 HMI Series. With a compact 4.3-inch screen size and a powerful 800 Mhz Cortex-A8 processor, this model is ideal for small and medium-sized control systems. DOP-103BQ allows users to interact directly with other components via an intuitive touch screen.
-
Description
Overview
Delta Electronics is a leading electronics corporation in Taiwan with over 38 manufacturing plants and 60 research centers worldwide. Delta Electronics products are present in 153 countries and territories. In HMI manufacturing, DELTA is also considered one of the “big brothers” in this industry.
DOP-103BQ is a basic screen line of Delta’s DOP-100 HMI Series. It is a great solution for automatic control systems with a compact design and easy-to-use interface. This is a tool to support system monitoring and operation and helps optimize the production process effectively and accurately. This product is gradually becoming the ideal choice for many businesses in factory automation.
Compared to DELTA’s old HMI lines such as the DOP-AS series and DOP-B series, the DOP-100 series supports more communication protocols, increasing compatibility with many types of PLCs or other controllers. Therefore, in recent years, DOP-103BQ has been the top choice of many manufacturers because of its efficiency and the high automation capabilities that it brings to businesses.
Detailed product specifications
| Specifications | Details |
| Brand | Delta Electronics |
| Model name | DOP 103BV |
| Panel type | 4.3 inches TFT LCD (65535 colours) |
| Resolution | 480 x 272 pixels |
| Display range | 95.04 x 53.856 mm |
| Backlight | LED backlight (half-life under room temperature 25oC > 20,000 hours) *1 |
| Brightness | 400 cd/m² (Typ.) |
| CPU | ARM Cortex-A8 (800 MHz) |
| Flash ROM | 256 Mbytes |
| RAM | 256 Mbytes |
| Touchscreen | 4-wire resistive touchscreen > 1,000,000 operated |

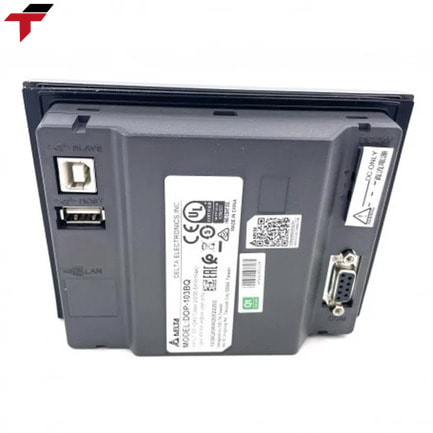

| USB | 1 USB Slave Ver 2.0; 1 USB Host Ver 2.0 |
| SD | N/A |
| Backup Battery | 3V lithium battery CR2032 x 1 |
| Backup Battery Life | About 3 years or more at 25°C (subject to operation temperature and condition) |
| Operation temperature | 0°C to 50°C (32°F to 122°F) |
| Dimension (WxHxD) mm | 137 x 103 x 37.1 |
| Weight | Approx. 280g |
Some notes when using to increase the life of the device
- The product should be installed in a dry, cool place and avoid direct sunlight.
- Do not disassemble the HMI or change the wiring system when the power is on.
- Make sure the device is properly connected, please refer to the wiring diagram before connecting.
- Do not touch the power source while in use
- Please contact the nearest distributor or the DELTA customer care center for a free battery replacement. Do not replace the battery at home.
- To ensure the HMI operates normally, the recommended power is 1.5 to 2 times the specified power consumption.
- Please use a dry cloth or soft paper to clean the product.
Where to buy HMI DELTA DOP 103BQ?
If you are looking for a top-notch automation control solution for your business, the HMI DELTA DOP 103BQ is the ideal choice. To buy genuine products at the most competitive prices, contact FLEXTECH immediately – the official distributor of Delta Electronics in Malaysia.
Commitment when buying at FLEXTECH
- 100% genuine products
- Warranty up to 24 months
- Professional free consulting team 24/7
- Fast delivery nationwide within 2 hours
Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
